8000 W and 10000 W pure sine wave output with a 120/240 V AC split-phase design.
Off-Grid Inverters

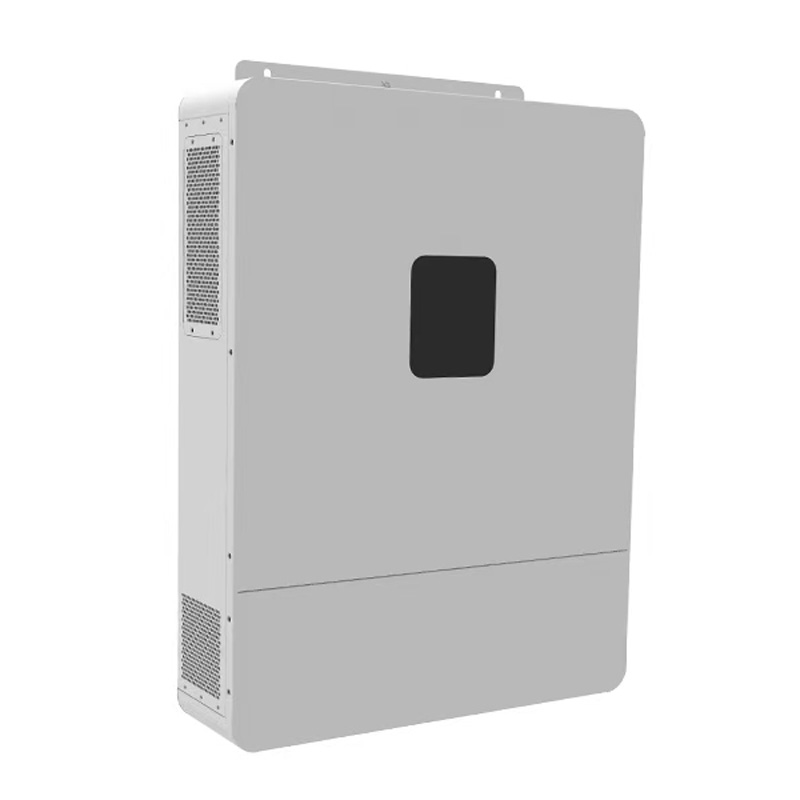

SP8000-OG / SP10000-OG Split-Phase Off-Grid Inverters
OEM supply inquiryVolume-order inquiry
Compare AMPEXE 8 kW and 10 kW off-grid inverter options for 120/240 V AC split-phase systems with 48 V battery input, dual MPPT charging, and generator input.
8000 W and 10000 W pure sine wave output with a 120/240 V AC split-phase design.
Dual MPPT trackers and up to 5500 W + 5500 W PV input.
Supports lithium, lead-acid, and user-defined 48 V batteries with charging up to 200 A.
Request a quotation
Ask about MOQ, lead time, market versions, packaging, and available OEM options.
Review the model-specific details.
Compare the listed electrical, mechanical, protection, and integration information before selecting a configuration.
Pure sine wave off-grid inverters for independent solar systems, battery-based mobile power, residential backup, remote sites, and generator-supported installations.
Dual MPPT trackers and up to 5500 W + 5500 W PV input.
Supports lithium, lead-acid, and user-defined 48 V batteries with charging up to 200 A.
Supports 1 to 6 compatible units in parallel, generator input, and stated 10 ms switching.
Model specifications
Technical specifications
Compare electrical, mechanical, operating, and model-specific parameters for the available configurations.
Match the model and market version to the required system configuration before ordering.
Swipe horizontally to compare every model column.
| Model | SP8000-OG | SP10000-OG |
|---|---|---|
| Inverter Output | ||
| Rated Output Power | 8,000W | 10,000W |
| Max. Output Power | 16,000VA | 20,000VA |
| Rated Output Voltage | 120Vac, single-phase / 240Vac, split-phase | |
| Load Capacity of Motors | 5HP | 6HP |
| Rated AC Frequency | 50/60Hz | |
| Waveform | Pure sine wave | |
| Output Mode | Off-grid (default) / power the load without battery | |
| Switch Time | 10ms (typical) | |
| Battery | ||
| Battery Type | Li-ion / Lead-acid / User-defined | |
| Rated Battery Voltage | 48V | |
| Battery Voltage Range | 40~60Vdc | |
| Max. Solar Charging Current | 180A | 200A |
| Max. Grid/Generator Charging Current | 100A | 120A |
| Max. Hybrid Charging Current | 180A | 200A |
| Solar Input | ||
| No. Of MPPT | 2 | |
| Max. PV Array Power | 5,500W+5,500W | |
| Max. Input Current | 22A+22A | |
| Max. Open Circuit Voltage | 500Vdc+500Vdc | |
| MPPT Voltage Range | 125~425Vdc | |
| Grid/Generator Input | ||
| Input Voltage Range | 90-140 V AC | |
| Input Frequency Range | 50/60Hz | |
| Bypass Overload Current | 63A | |
| Efficiency | ||
| MPPT Tracking Efficiency | 99.9% | |
| Max. Efficiency | 92% | |
| General Data | ||
| Parallel Capacity | 1~6 Units (More than 3 units in parallel can form a three-phase output) | |
| Dimensions (W × H × D) | 620 × 445 × 130 mm | |
| Operating noise | <60 dB | |
| Net weight | 27 kg | |
| Cooling method | Built-in fan | |
| Protection degree | IP20 (indoor only) | |
| Warranty | Stated 2 years; confirm market and sales-channel terms with AMPEXE | |
| Operating temperature | -10 to 55 °C; derating above 45 °C | |
| Communication | RS485 / CAN / USB / dry contact | |
| External module (optional) | Wi-Fi / GPRS | |
| Topology | Transformerless | |
| Listed Standards and Conformity References | RoHS / EN 61000-6-1 / IEC 61000-6-3 / FCC Part 15 Class B / IEC 62109-1 / IEC 62109-2 / UL 1741; confirm model scope and supporting documents with AMPEXE | |
| Protection | ||
| Protection Functions | Has PV input current limiting protection, PV input over-voltage, PV night reverse current protection, AC input over-voltage protection, AC input under-voltage protection, Battery over-voltage protection, Battery under-voltage protection, Battery over-current protection, AC output short-circuit protection, Heat sink over-temperature protection, Inverter over-load protection. | |
Select with the complete system in mind.
Start with the application, then confirm electrical fit, environment and order requirements against the selected model.
Map the load profile
Record continuous demand, startup loads and transfer priorities before choosing the inverter rating.
Review solar input
Check the planned array against the stated PV power, voltage and MPPT range for the selected model.
Match the battery bank
Confirm system voltage, battery chemistry, charging current and communication needs before integration.
Confirm system operation
Review transfer behavior, generator input, parallel operation and monitoring only where the selected model supports them.
Confirm the full system, not one feature
The listed transfer, surge, monitoring and protection features apply within quoted operating limits. Confirm PV, battery, generator and installation compatibility, plus local requirements, before approval.
Ask which current datasheet, user manual, packing list and market-specific order documents apply to the exact quoted configuration.
Built for scalable split-phase storage plans
High-capacity pure sine wave output, dual MPPT tracking, and parallel support position this platform for substantial off-grid storage designs.
Split-phase property systems
The 120/240 V AC split-phase design supports residential and property-scale off-grid power planning.
Dual-array solar input
Dual MPPT trackers and the available PV input capacity support systems built around two independently managed solar inputs.
Expandable storage projects
Listed support for one to six compatible units in parallel, multiple 48 V battery types, and generator input provides a path for scalable designs.

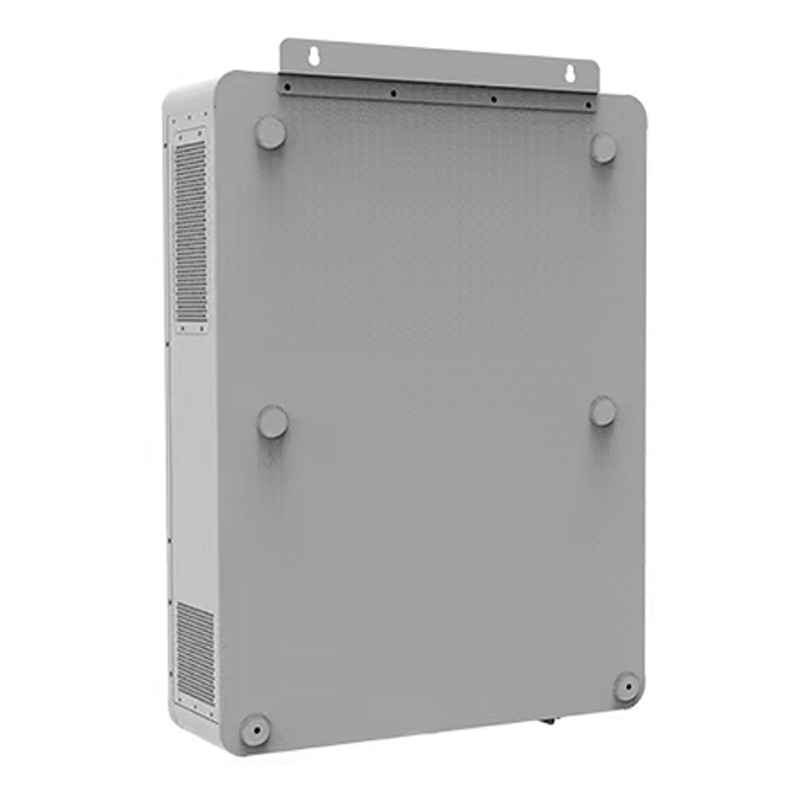

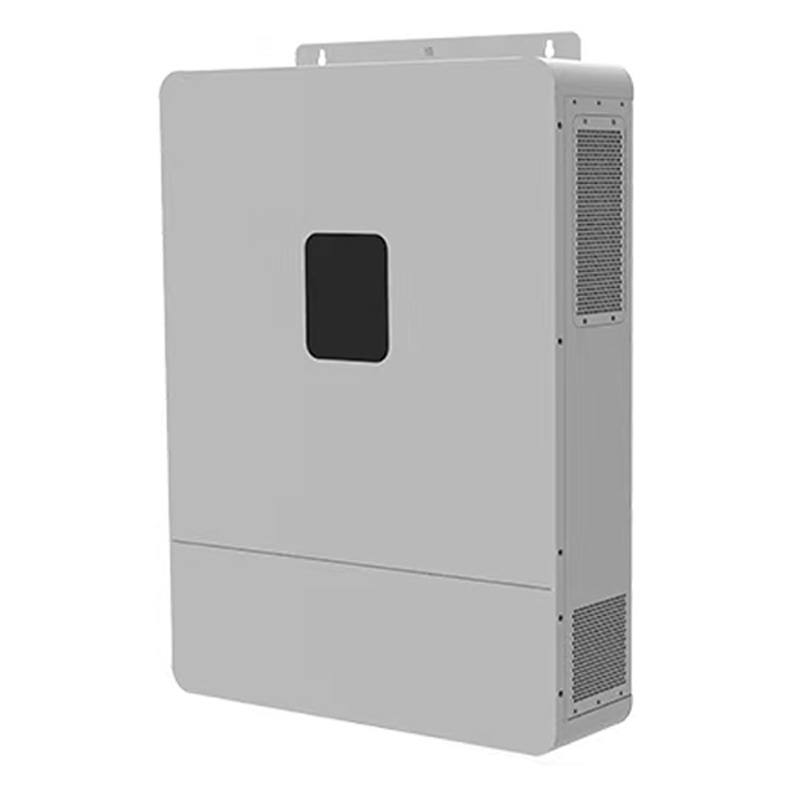

Product gallery
Review the available product views, enclosure details, controls, and installation format.
Discuss the required market configuration.
Use the inquiry to discuss available electrical configurations, branding, packaging, documentation, and project requirements.
Configuration options
Ask which branding, interface, enclosure, and packaging options are available.
Commercial planning
Confirm quantity, lead time, destination market, and documentation.
