5.12 kWh and 10.24 kWh wall-mounted capacity options.
Energy Storage Products

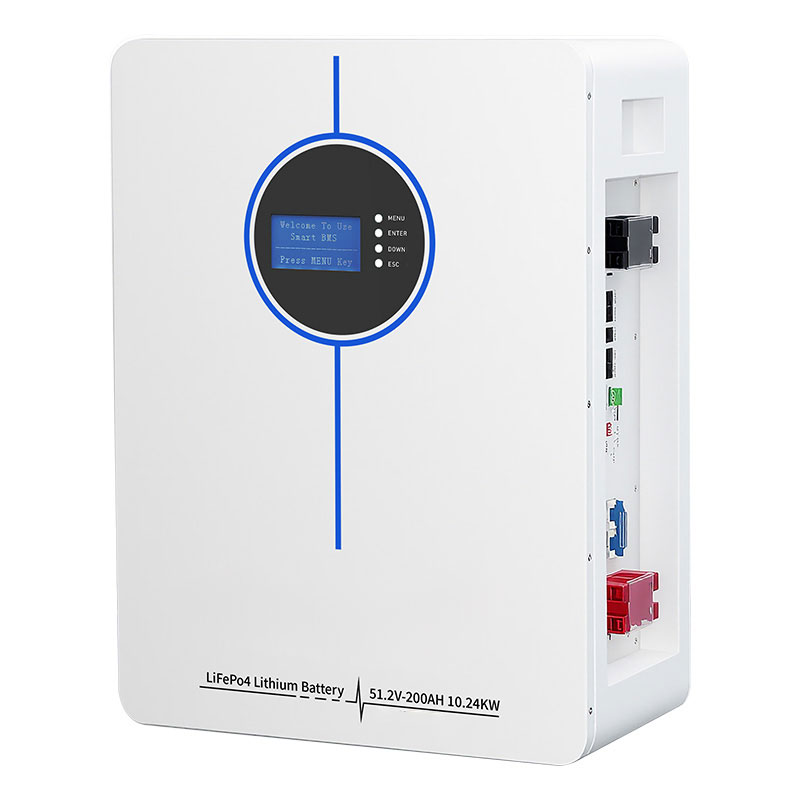

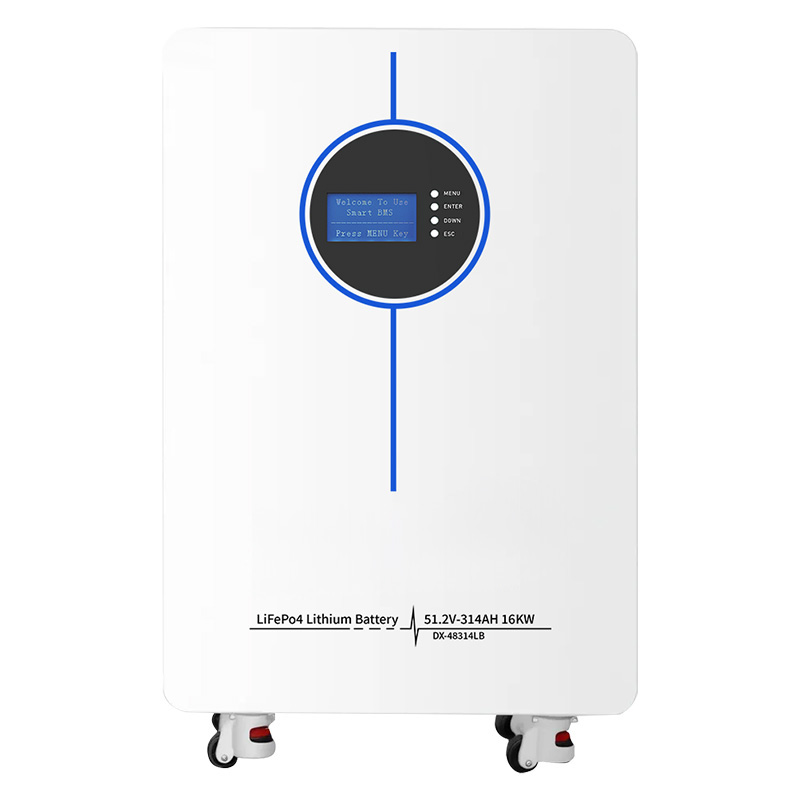

Wall-Mounted Lithium Battery
OEM supply inquiryVolume-order inquiry
Compare AMPEXE wall-mounted lithium batteries with 5.12 kWh and 10.24 kWh capacity options for residential solar storage and OEM integration.
5.12 kWh and 10.24 kWh wall-mounted capacity options.
51.2 V platform with charge and discharge current up to 200 A, depending on the model.
Wall-mounted installation lists support for up to 15 compatible units in parallel; confirm the final system design.
Request a quotation
Ask about MOQ, lead time, market versions, packaging, and available OEM options.
Review the model-specific details.
Compare the listed electrical, mechanical, protection, and integration information before selecting a configuration.
LiFePO4 battery ranges and compact energy storage systems for residential backup, solar storage, and OEM projects.
51.2 V platform with charge and discharge current up to 200 A, depending on the model.
Wall-mounted installation lists support for up to 15 compatible units in parallel; confirm the final system design.
Smart BMS, breaker protection, CAN/RS485/RS232, and at least 6000 cycles at 25 °C and 80% depth of discharge, subject to the stated test method.
Model specifications
Technical specifications
Compare electrical, mechanical, operating, and model-specific parameters for the available configurations.
Match the model and market version to the required system configuration before ordering.
Swipe horizontally to compare every model column.
| Model | DX-48100PWLB | DX-48200PWLB |
|---|---|---|
| Total Capacity | 5.12kWh | 10.24kWh |
| Nominal Voltage | 51.2V | 51.2V |
| Voltage Range | 43.2~58.4Vdc | 43.2~58.4Vdc |
| MAX. Charge / Discharge Current | 100A | 200A |
| Recommend Charge & Discharge Current | ≤50A | ≤100A |
| MAX. Output Power | 5120W | 10240W |
| Recommend Output Power | 2500W | 5000W |
| DOD | 0.95 | 0.95 |
| Scalability | Up to 15 units in parallel | |
| Installation | Wall-mounted | |
| Communication | CAN&RS485&RS232 | |
| Protection | Built-in smart BMS and breaker | |
| Ingress Protection | IP21 | |
| Cycle Life | ≥6000 cycles at 25 °C and 80% DoD; confirm test method | |
| Working Temperature Range | Confirm working temperature range with AMPEXE | |
| Packing Information | ||
| Stated Design Life (Years; Not Warranty) | 20 | 20 |
| Net Weight (KG) | 45KG | 90KG |
| Gross Weight (KG) | 48KG | 96KG |
| Product Dimension (MM) | 650*400*180 | 750*520*290 |
| Package Dimension (MM) | 710*460*240 | 845*610*375 |
| Warranty Period | Stated 5 years; confirm market and sales-channel terms with AMPEXE | |
Select with the complete system in mind.
Start with the application, then confirm electrical fit, environment and order requirements against the selected model.
Set the storage target
Choose the stated capacity and format that fit the planned solar, backup or storage application.
Verify electrical limits
Confirm system voltage, charge and discharge current, and inverter compatibility before selection.
Plan mounting and expansion
Review the stated mounting format and parallel support against the available space and future capacity plan.
Confirm communications
Match the available BMS and communication interfaces to the intended inverter or energy management system.
Confirm the full system, not one feature
The listed BMS, breaker, environmental and thermal protection features apply within stated product limits. Confirm inverter compatibility, current limits, communications, installation conditions and local requirements.
Ask which current datasheet, user manual, packing list and market-specific order documents apply to the exact quoted configuration.
Flexible wall-mounted storage
Two wall-mounted capacity options combine parallel expansion, smart protection, and system communication support.

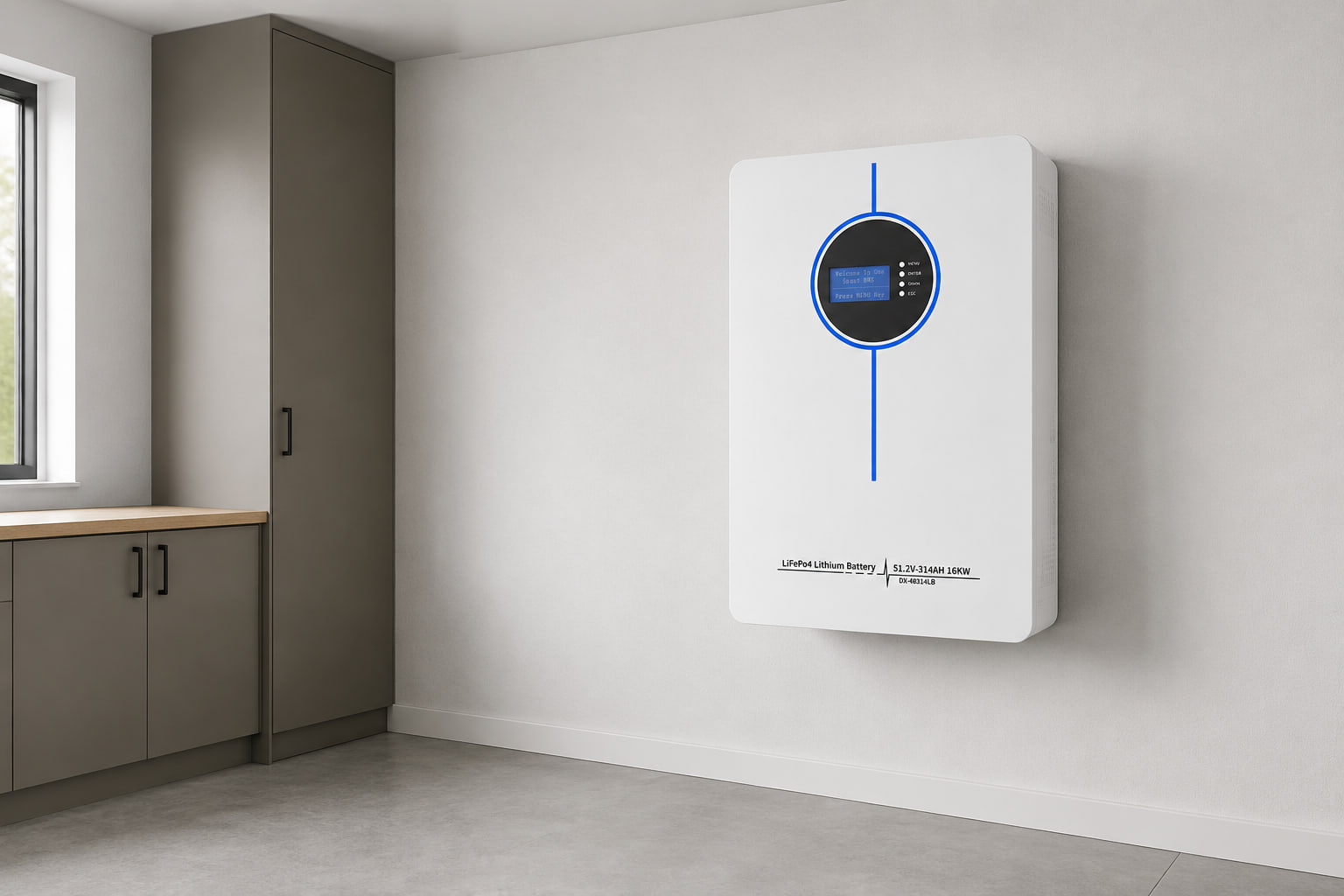

Residential solar storage
Wall installation makes efficient use of space in residential solar storage projects.
Commercial energy storage
Multiple capacities and parallel support address commercial energy storage planning.
OEM system integration
Wall-mounted installation and communication interfaces support OEM system integration.
Product gallery
Review the available product views, enclosure details, controls, and installation format.
Discuss the required market configuration.
Use the inquiry to discuss available electrical configurations, branding, packaging, documentation, and project requirements.
Configuration options
Ask which branding, interface, enclosure, and packaging options are available.
Commercial planning
Confirm quantity, lead time, destination market, and documentation.
