5.12 kWh and 10.24 kWh versions for residential and light-commercial storage.
Energy Storage Products

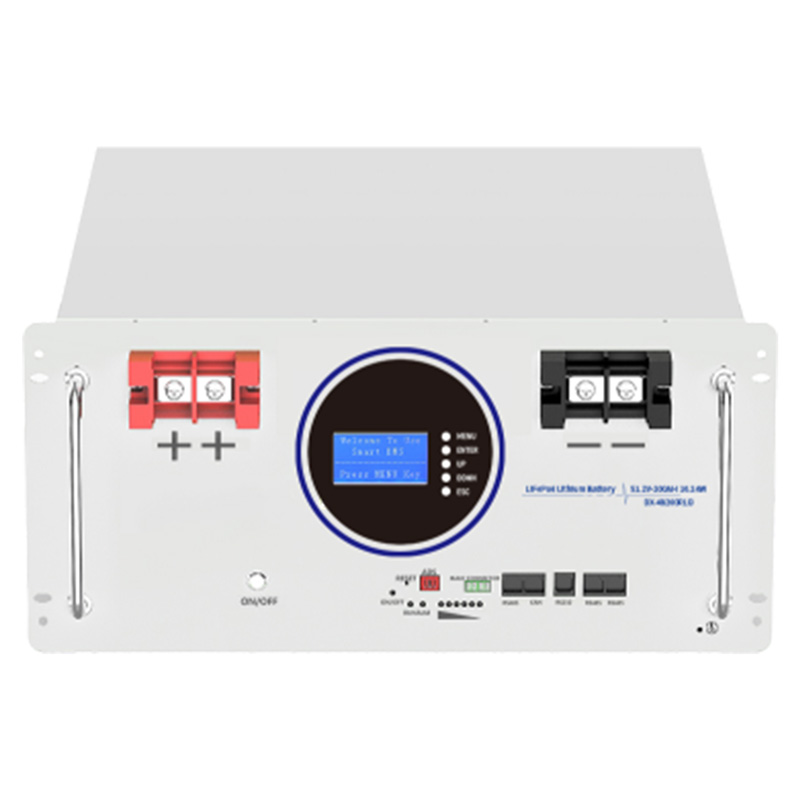

Rack-Mounted Lithium Battery
OEM supply inquiryVolume-order inquiry
Compare AMPEXE rack-mounted lithium battery options for scalable energy storage, solar systems, and OEM battery integration.
5.12 kWh and 10.24 kWh versions for residential and light-commercial storage.
51.2 V platform with charge and discharge current up to 200 A by model.
The rack structure lists support for up to 15 compatible units in parallel; confirm the final system design.
Request a quotation
Ask about MOQ, lead time, market versions, packaging, and available OEM options.
Review the model-specific details.
Compare the listed electrical, mechanical, protection, and integration information before selecting a configuration.
LiFePO4 battery ranges and compact energy storage systems for residential backup, solar storage, and OEM projects.
51.2 V platform with charge and discharge current up to 200 A by model.
The rack structure lists support for up to 15 compatible units in parallel; confirm the final system design.
Smart BMS, breaker protection, CAN/RS485/RS232, and at least 6000 cycles at 25 °C and 80% depth of discharge, subject to the stated test method.
Model specifications
Technical specifications
Compare electrical, mechanical, operating, and model-specific parameters for the available configurations.
Match the model and market version to the required system configuration before ordering.
Swipe horizontally to compare every model column.
| Model | DX-48100RLB | DX-48200RLB |
|---|---|---|
| Total Capacity | 5.12KWH | 10.24KWH |
| Nominal Voltage | 51.2V | 51.2V |
| Voltage Range | 43.2~58.4Vdc | 43.2~58.4Vdc |
| MAX. Charge/Discharge Current | 100A | 200A |
| Recommended Charge & Discharge Current | ≤50A | ≤100A |
| MAX. Output Power | 5120W | 10240W |
| Recommend Output Power | 2500W | 5000W |
| DOD | 0.95 | 0.95 |
| Scalability | Up to 15 units in parallel | |
| Installation | Rack-Mounted | |
| Communication | CAN&RS485&RS232 | |
| Protection | Built-in smart BMS and breaker | |
| Ingress Protection | IP21 | |
| Cycle Life | ≥6000 cycles at 25 °C and 80% DoD; confirm test method | |
| Working Temperature Range | Confirm working temperature range with AMPEXE | |
| Packing information | ||
| Stated Design Life (Years; Not Warranty) | 20 | 20 |
| Net Weight (KG) | 40KG | 80KG |
| Gross Weight (KG) | 43KG | 83KG |
| Product Dimension (MM) | 460*442*177 | 520*442*221 |
| Package Dimension (MM) | 560*520*240 | 620*520*300 |
| Warranty Period | Stated 5 years; confirm market and sales-channel terms with AMPEXE | |
Select with the complete system in mind.
Start with the application, then confirm electrical fit, environment and order requirements against the selected model.
Set the storage target
Choose the stated capacity and format that fit the planned solar, backup or storage application.
Verify electrical limits
Confirm system voltage, charge and discharge current, and inverter compatibility before selection.
Plan mounting and expansion
Review the stated mounting format and parallel support against the available space and future capacity plan.
Confirm communications
Match the available BMS and communication interfaces to the intended inverter or energy management system.
Confirm the full system, not one feature
The listed BMS, breaker, environmental and thermal protection features apply within stated product limits. Confirm inverter compatibility, current limits, communications, installation conditions and local requirements.
Ask which current datasheet, user manual, packing list and market-specific order documents apply to the exact quoted configuration.

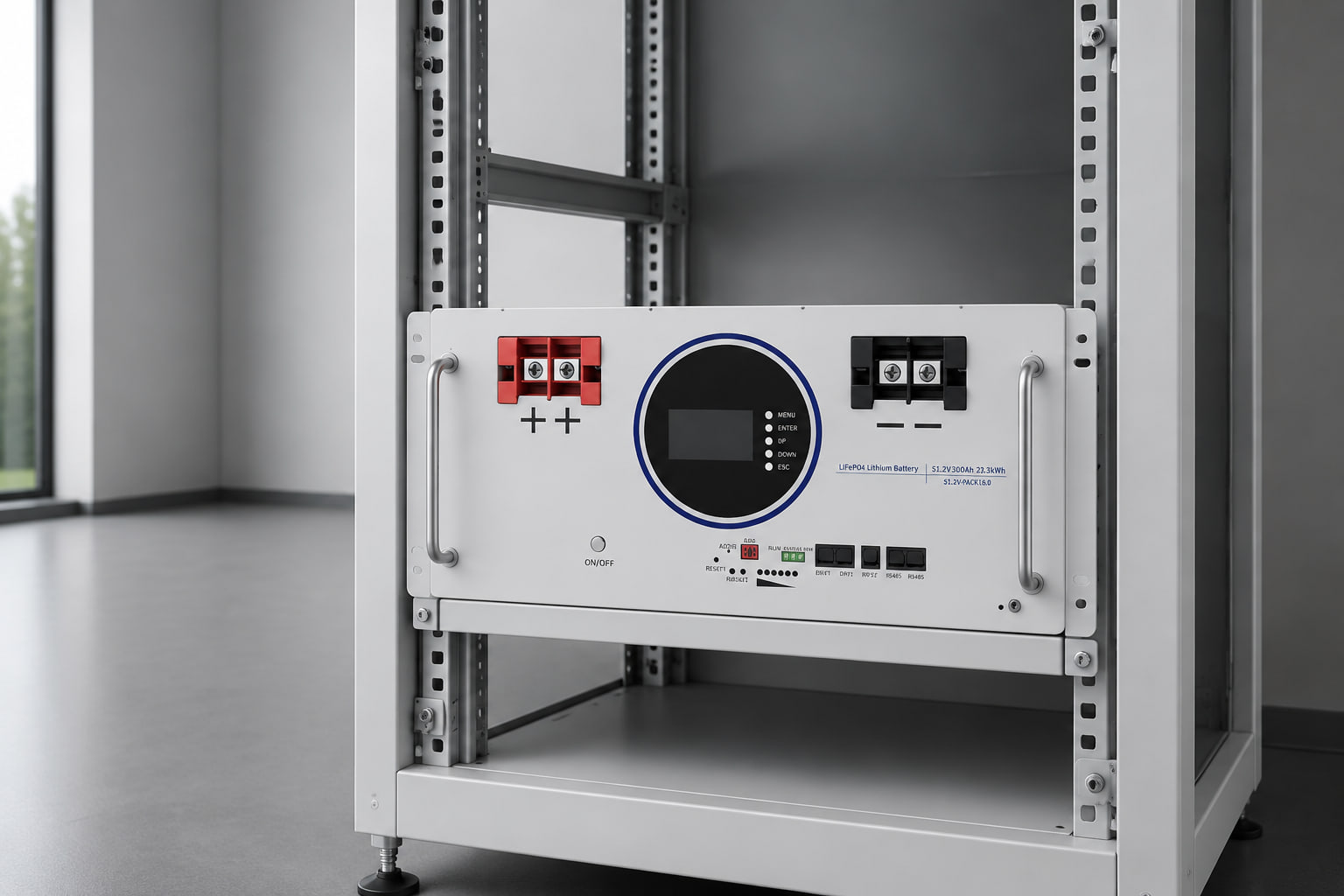

Rack-ready scalable storage
A rack platform with 5.12 kWh and 10.24 kWh versions, listed parallel expansion, BMS protection, and multiple communication interfaces.
Residential storage
The 51.2 V rack platform supports organized residential energy storage systems.
Light-commercial storage
Capacity options and high-current versions address light commercial storage requirements.
OEM rack integration
A standard rack structure and communication interfaces support OEM system integration.
Discuss the required market configuration.
Use the inquiry to discuss available electrical configurations, branding, packaging, documentation, and project requirements.
Configuration options
Ask which branding, interface, enclosure, and packaging options are available.
Commercial planning
Confirm quantity, lead time, destination market, and documentation.
