    Hybrid Inverters

    IP66 Hybrid Inverter Series

    OEM supply inquiryVolume-order inquiry

    Compare AMPEXE 6 kW, 8.8 kW, 10 kW, and 12 kW IP66 hybrid inverters with dual MPPT input, 48 V battery support, and optional parallel operation.

    Covers 6 kW, 8.8 kW, 10 kW, and 12 kW models with peak power up to 24 kVA.

    Dual MPPT supports up to 13.2 kW photovoltaic input with stated tracking efficiency up to 99.9%.

    Works with lead-acid, lithium, and user-defined batteries, with charging capability up to 200 A by model.

    Request a quotation

    Ask about MOQ, lead time, market versions, packaging, and available OEM options.

    Email a product inquiry:marketing@ampexe.comView highlights

    Review the model-specific details.

    Compare the listed electrical, mechanical, protection, and integration information before selecting a configuration.

    Hybrid inverters for grid-tied solar, battery backup, and monitored residential energy systems.

    Covers 6 kW, 8.8 kW, 10 kW, and 12 kW models with peak power up to 24 kVA.

    Dual MPPT supports up to 13.2 kW photovoltaic input with stated tracking efficiency up to 99.9%.

    Works with lead-acid, lithium, and user-defined batteries, with charging capability up to 200 A by model.

    Optional parallel operation supports up to six compatible units; confirm the selected model and configuration.

    Model specifications

    Technical specifications

    Compare electrical, mechanical, operating, and model-specific parameters for the available configurations.

    Match the model and market version to the required system configuration before ordering.

    Swipe horizontally to compare every model column.

    IP66 Hybrid Inverter Series technical specifications
    ModelDX-6K-48V-EUDX-8K-48V-EUDX-10K-48V-EUDX-12K-48V-EU
    Inverter Output
    Rated Output Power6000W8800W10000W12000W
    Maximum Peak Power12000VA17600VA20000VA24000VA
    Rated Output Voltage230Vac, single phase230Vac single-phase / three-phase (parallel)230Vac single-phase / three-phase (parallel)230Vac single-phase / three-phase (parallel)
    Motor Load Capacity4HP5HP6HP6HP
    Output Frequency Range50Hz±0.3Hz / 60Hz±0.3Hz50/60Hz50/60Hz50/60Hz
    Switching Time≤10 msConfirm with AMPEXEConfirm with AMPEXEConfirm with AMPEXE
    Number of Parallel Machines1~61 to 6 units1 to 6 units1 to 6 units
    AC Output (Grid Connected)
    Rated Output Power6000W8800W10000W12000W
    Maximum Apparent Power12000VA8800VA10000VA12000VA
    Maximum Output Current28.6A40A43.5A54.6A
    Total Harmonic Distortion<3%<3%<3%<3%
    Power Factor0.8 leading to 0.8 lagging0.8 leading to 0.8 lagging0.8 leading to 0.8 lagging0.8 leading to 0.8 lagging
    Rated Voltage230Vac, single phase230Vac, single phase230Vac, single phase230Vac, single phase
    Frequency50Hz/60Hz50Hz/60Hz50Hz/60Hz50Hz/60Hz
    Battery Parameters
    Battery TypeLead-acid batteries / Lithium batteries / User-defined batteriesLead-acid batteries / Lithium batteries / User-defined batteriesLead-acid batteries / Lithium batteries / User-defined batteriesLead-acid batteries / Lithium batteries / User-defined batteries
    Rated Battery Voltage48V (Minimum startup voltage 44V)48V48V48V
    Battery Voltage Range40 ~ 60Vdc40 ~ 60Vdc40 ~ 60Vdc40 ~ 60Vdc
    Maximum Photovoltaic Charging Current100A120A120A120A
    Maximum Utility Charging Current60A200A200A200A
    Maximum Charging Current of Generator60A200A200A200A
    Photovoltaic Input
    MPPT Quantity2222
    Maximum Input Power4500W+4500W5500W+5500W5500W+5500W6600W+6600W
    Maximum Input Current16A+16A22A+22A22A+22A22A+22A
    Maximum Short-Circuit Current27 A + 27 AConfirm with AMPEXEConfirm with AMPEXEConfirm with AMPEXE
    Maximum Open Circuit Voltage500Vdc+500Vdc500Vdc+500Vdc500Vdc+500Vdc500Vdc+500Vdc
    MPPT Voltage Range120~450Vdc125~425Vdc125~425Vdc125~425Vdc
    Public Electricity / Generator Input
    Input Voltage Range90 ~ 280Vac90 ~ 280Vac90 ~ 280Vac90 ~ 280Vac
    Input Frequency Range50/60Hz50/60Hz50/60Hz50/60Hz
    Bypass Overload Current40A63A63A63A
    Efficiency
    MPPT Tracking Efficiency99.9%99.9%99.9%99.9%
    Maximum Efficiency97.5%97.5%97.5%97.5%
    European EfficiencyConfirm with AMPEXE97%97%97%
    General Data
    Size530*345*205mm670*440*240MM670*440*240MM670*440*240MM
    Weight20kg40.5KG40.5KG40.5KG
    Protection LevelIP66IP66IP66IP66
    Operating Temperature Range-25~60℃-25~60℃-25~60℃-25~60℃
    Humidity Range0% ~ 100%0 ~ 100%0 ~ 100%0 ~ 100%
    NoiseStated <60 dB; confirm test conditions with AMPEXEConfirm with AMPEXEConfirm with AMPEXEConfirm with AMPEXE
    Cooling MethodRadiator and intelligent air coolingForced air coolingForced air coolingForced air cooling
    WarrantyStated 5 years; confirm market and sales-channel terms with AMPEXEConfirm with AMPEXEConfirm with AMPEXEConfirm with AMPEXE
    Communication Interface
    Internal InterfaceRS485/CAN/USB/Dry contactRS485/CAN/USB/Dry contactRS485/CAN/USB/Dry contactRS485/CAN/USB/Dry contact
    External Module (Optional)Wi-Fi/4GWi-Fi/4GWi-Fi/4GWi-Fi/4G
    Certification
    Listed Grid-Connection StandardsEN 50549-1, G99, NRS 097, VDE-AR-N 4105, CEI 0-21, UNE 217002; confirm certificate scope with AMPEXEConfirm model-specific certificates with AMPEXEConfirm model-specific certificates with AMPEXEConfirm model-specific certificates with AMPEXE
    Listed Safety StandardsIEC 62109-1, IEC 62109-2; confirm model-specific reports with AMPEXEIEC 62109-1, IEC 62109-2; confirm model-specific reports with AMPEXEIEC 62109-1, IEC 62109-2; confirm model-specific reports with AMPEXEIEC 62109-1, IEC 62109-2; confirm model-specific reports with AMPEXE
    Listed EMC StandardsEN 61000-6-1, EN 61000-6-3, FCC Part 15 Class B; confirm model-specific reports with AMPEXEEN 61000-6-1, EN 61000-6-3, FCC Part 15 Class B; confirm model-specific reports with AMPEXEEN 61000-6-1, EN 61000-6-3, FCC Part 15 Class B; confirm model-specific reports with AMPEXEEN 61000-6-1, EN 61000-6-3, FCC Part 15 Class B; confirm model-specific reports with AMPEXE
    RoHSConfirm model-specific RoHS documentation with AMPEXEConfirm model-specific RoHS documentation with AMPEXEConfirm model-specific RoHS documentation with AMPEXEConfirm model-specific RoHS documentation with AMPEXE
    Optional Features
    Parallel Operation FunctionOptional; confirm model and configurationOptional; confirm model and configurationOptional; confirm model and configurationOptional; confirm model and configuration
    Wi-Fi FunctionalityOptionalOptionalOptionalOptional
    Power Grid Anti-Reverse Current CTOptionalOptionalOptionalOptional

    Select with the complete system in mind.

    Start with the application, then confirm electrical fit, environment and order requirements against the selected model.

    Define the power profile

    List continuous loads, startup demand and backup priorities before selecting an output model.

    Check the PV window

    Match the planned array voltage and power to the stated PV input and MPPT limits for the selected model.

    Verify storage compatibility

    Confirm battery voltage, chemistry, charge current and communication requirements against the quoted configuration.

    Plan the installation

    Review mounting, enclosure protection, monitoring, parallel operation and local electrical requirements where applicable.

    Confirm the full system, not one feature

    The listed transfer, surge, monitoring and protection features apply within quoted operating limits. Confirm PV, battery, grid and installation compatibility, plus local requirements, before approval.

    Ask which current datasheet, user manual, packing list and market-specific order documents apply to the exact quoted configuration.

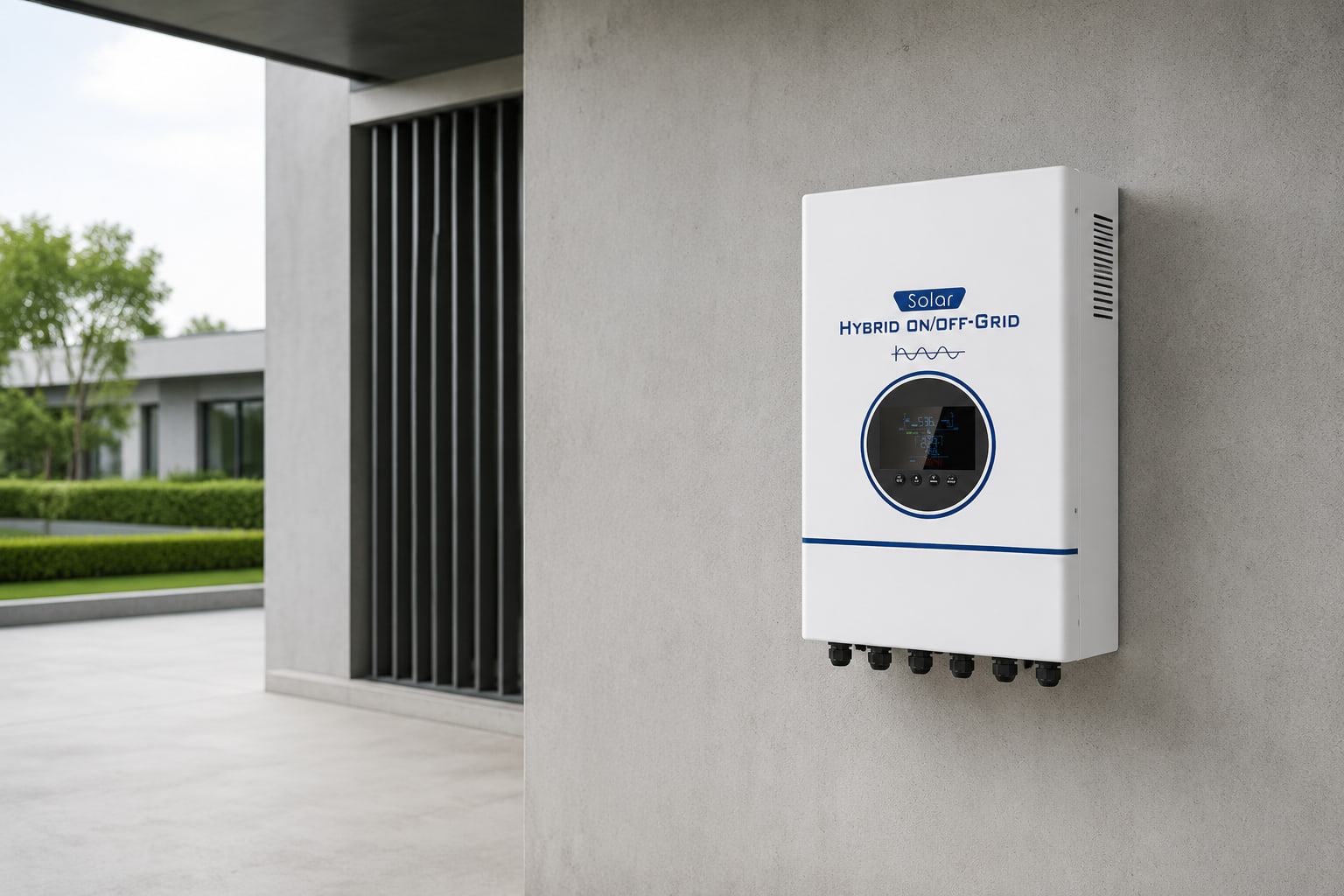

    AMPEXE IP66 hybrid inverter displayed with empty ports on a sheltered exterior utility wall

    Ready for demanding hybrid energy settings

    IP66 protection, flexible communications, and a broad model range help this inverter platform serve organized on-grid and off-grid system designs.

    Protected outdoor installations

    The IP66 enclosure supports inverter placement in appropriately planned exposed or semi-exposed energy areas.

    Residential and commercial hybrid systems

    Multiple output models and dual MPPT solar input provide options for projects with different capacity requirements.

    Scalable parallel projects

    Optional parallel operation supports up to six compatible units, subject to the selected model and configuration.

    Product gallery

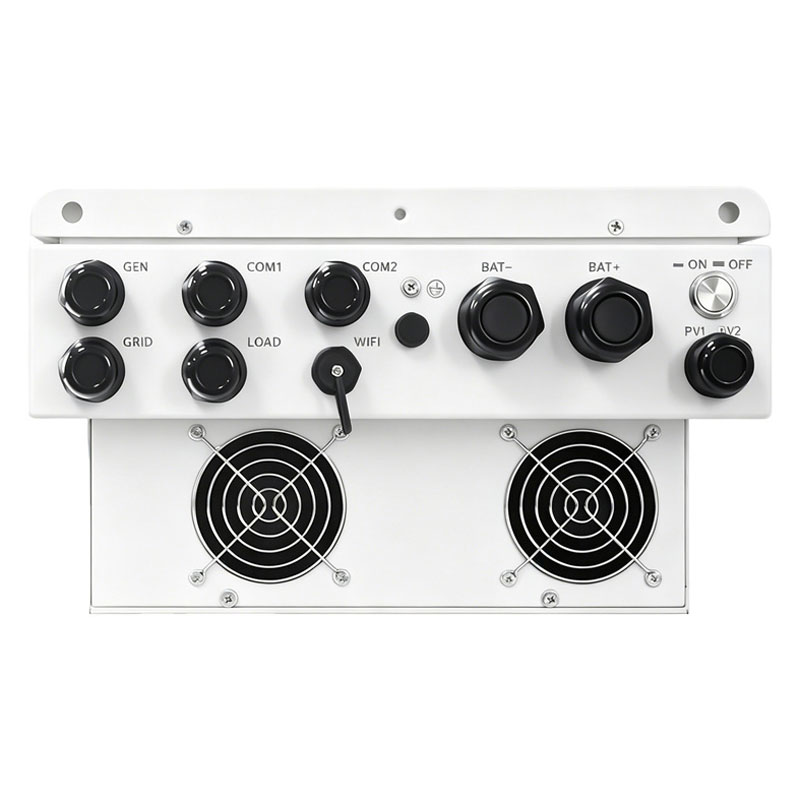

    Review the available product views, enclosure details, controls, and installation format.

    Discuss the required market configuration.

    Use the inquiry to discuss available electrical configurations, branding, packaging, documentation, and project requirements.

    Configuration options

    Ask which branding, interface, enclosure, and packaging options are available.

    Commercial planning

    Confirm quantity, lead time, destination market, and documentation.
