4000 W pure sine wave output with a stated 10 ms transfer time.
Off-Grid Inverters

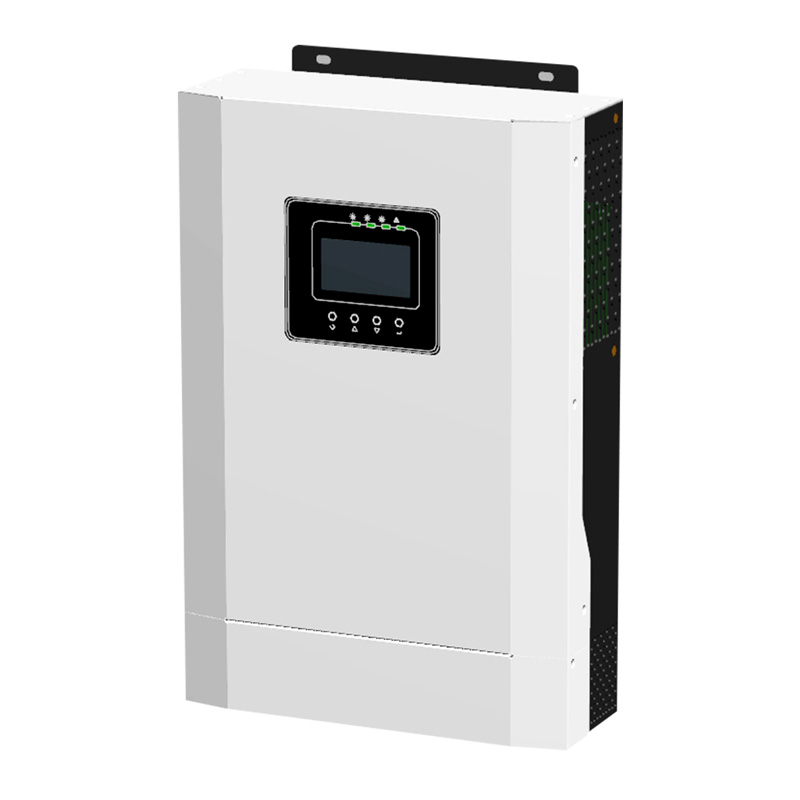

A4000 4000 W Off-Grid Inverter
OEM supply inquiryVolume-order inquiryModel A4000
Review the AMPEXE A4000 4000 W off-grid inverter for standalone solar and OEM supply projects.
4000 W pure sine wave output with a stated 10 ms transfer time.
Low-voltage and high-voltage MPPT configurations support up to 2000 W or 5000 W PV input.
Designed for 48 V sealed lead-acid, GEL, AGM, and LFP battery systems.
Request a quotation
Ask about MOQ, lead time, market versions, packaging, and available OEM options.
Review the model-specific details.
Compare the listed electrical, mechanical, protection, and integration information before selecting a configuration.
Pure sine wave off-grid inverters for independent solar systems, battery-based mobile power, residential backup, remote sites, and generator-supported installations.
Low-voltage and high-voltage MPPT configurations support up to 2000 W or 5000 W PV input.
Designed for 48 V sealed lead-acid, GEL, AGM, and LFP battery systems.
Stated solar charging efficiency is up to 97%, depending on the MPPT configuration.
Model specifications
Technical specifications
Compare electrical, mechanical, operating, and model-specific parameters for the available configurations.
Match the model and market version to the required system configuration before ordering.
Swipe horizontally to compare every model column.
| Model | 4000W+LV MPPT | 4000W+HV MPPT |
|---|---|---|
| Rated Power (W) | 4000 | 4000 |
| Power Factor | 1 | 1 |
| AC Output Waveform | Pure sine | Pure sine |
| AC Output Voltage (VAC) | 230 | 230 |
| AC Output Frequency (Hz) | 50 | 50 |
| Battery Voltage (VDC) | 48 | 48 |
| AC Grid Mode | ||
| AC Voltage (VAC) | as grid/gen | as grid/gen |
| AC Voltage Range (VAC) | 176–264 | 176–264 |
| AC Frequency (Hz) | as grid/gen | as grid/gen |
| Transfer Time (Typical UPS, ms) | 10ms | 10ms |
| Charger Mode | ||
| AC Voltage (VAC) | 230 | 230 |
| AC Voltage Range (VAC) | 176–264 | 176–264 |
| Max. PV Array Power (W) | 2000 | 5000 |
| MPPT Range @ Operating Voltage (VDC) | 60–100 | 150–450 |
| PV Array Open Circuit Voltage (Max, VDC) | 100 | 480 |
| Maximum AC Charge Current (A) | 60 | 60 |
| Maximum Solar Charge Current (A) | 50 | 80 |
| Maximum Charge Current (A) | 110 | 80 |
| AC Charging Peak Efficiency | 94% | 94% |
| Solar Charging Efficiency (Max) | 97% | 97% |
| Nominal Battery Voltage (VDC) | 48 | 48 |
| Floating Charge Voltage (VDC) | 54 | 54 |
| Bulk Charging Voltage (VDC) | 56.4 | 56.4 |
| Overcharge Protection (VDC) | 66 | 66 |
| Charging Algorithm | 3-Step | 3-Step |
| Battery / Inverter Mode | ||
| Nominal Battery Voltage (VDC) | 48 | 48 |
| Cold Start Voltage (VDC) | 46 | 46 |
| Peak Efficiency | 92% | 92% |
| Overload Protection | 60s@105~125% load 15s@125~150% load 200ms@>150% | |
| Recommend Battery Type | sealed lead acid, GEL/AGM lead-acid or LFP | |
| Mechanics | ||
| Clear Dimension (D × W × H, mm) | 103.8 × 265 × 412.6 | |
| Recommended Installation | Mounting vertically | |
Select with the complete system in mind.
Start with the application, then confirm electrical fit, environment and order requirements against the selected model.
Map the load profile
Record continuous demand, startup loads and transfer priorities before choosing the inverter rating.
Review solar input
Check the planned array against the stated PV power, voltage and MPPT range for the selected model.
Match the battery bank
Confirm system voltage, battery chemistry, charging current and communication needs before integration.
Confirm system operation
Review transfer behavior, generator input, parallel operation and monitoring only where the selected model supports them.
Confirm the full system, not one feature
The listed transfer, surge, monitoring and protection features apply within quoted operating limits. Confirm PV, battery, generator and installation compatibility, plus local requirements, before approval.
Ask which current datasheet, user manual, packing list and market-specific order documents apply to the exact quoted configuration.
Dependable off-grid power in a compact format
Pure sine wave output, a stated transfer time, and selectable MPPT configurations support different off-grid project designs.

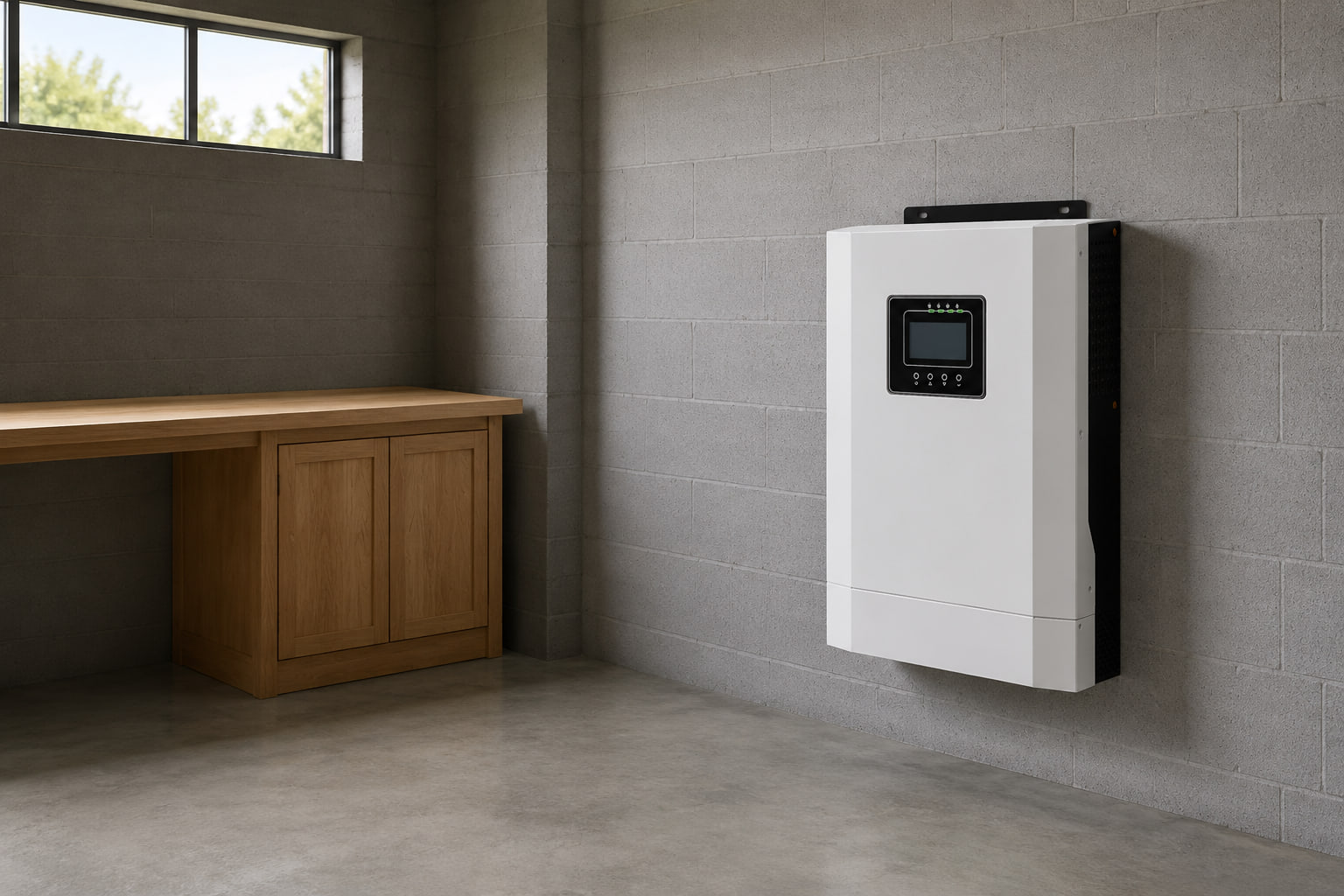

Off-grid homes and workshops
The 4000 W output supports independent property projects that require pure sine wave power.
Responsive backup systems
The stated 10 ms transfer may reduce interruption for compatible loads; it is not zero-transfer.
Flexible solar array designs
Low-voltage and high-voltage MPPT options let installers select an input approach for the planned system.
Product gallery
Review the available product views, enclosure details, controls, and installation format.
Discuss the required market configuration.
Use the inquiry to discuss available electrical configurations, branding, packaging, documentation, and project requirements.
Configuration options
Ask which branding, interface, enclosure, and packaging options are available.
Commercial planning
Confirm quantity, lead time, destination market, and documentation.
