896 Wh LiFePO4 battery with a stated cycle life of more than 4000 cycles; confirm retention and test conditions.
Portable Power Stations

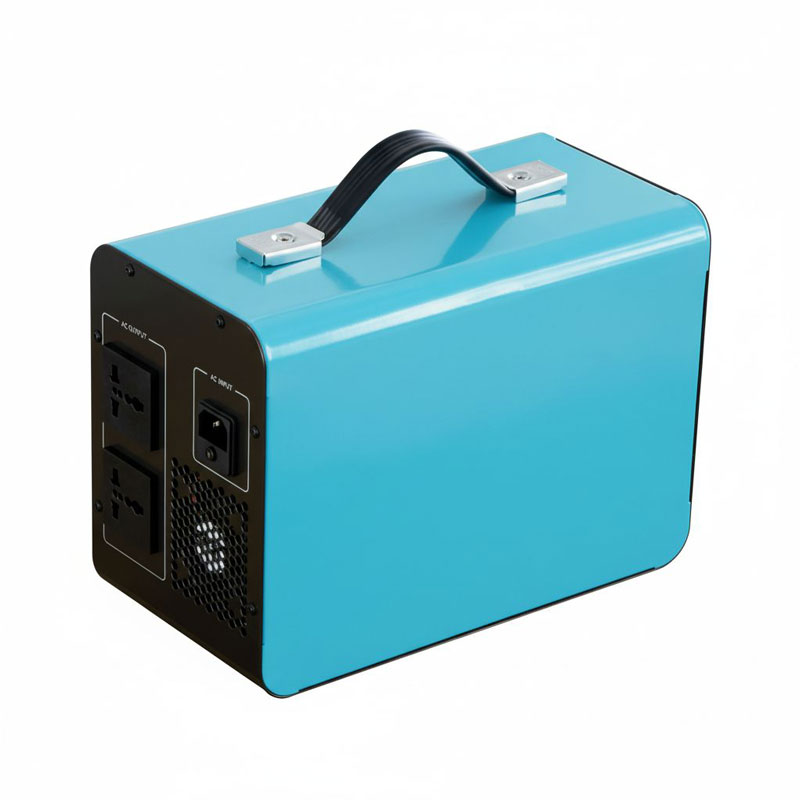

V500 / V700 Portable Power Stations
OEM supply inquiryVolume-order inquiryModel V500 / V700
Compare AMPEXE V500 and V700 portable power stations with 896 Wh LiFePO4 capacity, AC and solar charging, and multiple AC, USB, and DC outputs.
896 Wh LiFePO4 battery with a stated cycle life of more than 4000 cycles; confirm retention and test conditions.
500 W and 700 W versions with surge power up to 1400 W.
AC charging up to 500 W and solar input up to 250 W through XT60.
Request a quotation
Ask about MOQ, lead time, market versions, packaging, and available OEM options.
Review the model-specific details.
Compare the listed electrical, mechanical, protection, and integration information before selecting a configuration.
Portable power stations with LiFePO4 batteries for outdoor use, mobile work, emergency backup, and solar charging.
500 W and 700 W versions with surge power up to 1400 W.
AC charging up to 500 W and solar input up to 250 W through XT60.
AC, USB-A, USB-C, and DC5521 outputs for compatible electronics.
Model specifications
Technical specifications
Compare electrical, mechanical, operating, and model-specific parameters for the available configurations.
Match the model and market version to the required system configuration before ordering.
Swipe horizontally to compare every model column.
| Model | V500 | V700 |
|---|---|---|
| Battery Input | ||
| Battery Capacity (Wh) | 896 | 896 |
| Battery Input Nominal Voltage (V) | 3.2 | 3.2 |
| Battery Input Voltage Range (V) | 2.9~3.65 | 2.9~3.65 |
| Nominal Charging Current (A) | 180 | 200 |
| Nominal Discharging Current (A) | 200 | 280 |
| Max. Discharging Current (A) | 220 | 300 |
| Life Cycles (@25°C, 0.5C Discharge, DOD80%) | 4000+ | 4000+ |
| AC Input | ||
| AC Charging Power (W) | 400 | 500 |
| Nominal Voltage (Vac) | 220 | 220 |
| Voltage Range (V) | 180~264 | 180~264 |
| Nominal Frequency (Hz) | 50 | 50 |
| Power Factor (@Max. Charging Power) | 0.9 | 0.9 |
| DC Input (XT60) | ||
| Max. Solar Charging Input Power (W) | 250 | 250 |
| DC Input Voltage Range (V) | 12~50 | 12~50 |
| Maximum DC Input Current (A; Confirm Source with AMPEXE) | 10 | 10 |
| AC Output | ||
| Nominal AC Power (W) | 500 | 700 |
| Surge Power (W) | 1000 | 1400 |
| Nominal Grid Voltage (Vac) | 220 | 220 |
| Nominal Grid Frequency (Hz) | 50 | 50 |
| Nominal AC Current (A) | 2.2 | 3.2 |
| THDv at Nominal Power (%) | THD<3%, with Rated Resistive Load | THD<3%, with Rated Resistive Load |
| DC Output | ||
| TYPE-C / USB-A | 5V=3A 9V=2.22A 12V=1.67A | 5V=3A 9V=2.22A 12V=1.67A |
| USB-A + TYPE-C | 5V=3A | 5V=3A |
| DC5521 Output | 12V=2A | 12V=2A |
| Efficiency | ||
| Battery to AC Max (%) | 85% | 85% |
| AC to Battery Max (%) | 85% | 85% |
| Protection | Input Overvoltage Protection, Input Undervoltage Protection, Input Overvoltage Recovery, Input Undervoltage Recovery, Output Undervoltage Protection, Output Overload Protection, Over-temperature Protection | Input Overvoltage Protection, Input Undervoltage Protection, Input Overvoltage Recovery, Input Undervoltage Recovery, Output Undervoltage Protection, Output Overload Protection, Over-temperature Protection |
| General Data | ||
| Dimensions (L×W×H) (mm) | 305×143×242 | 305×143×242 |
| Weight (Kg) | 14 | 14 |
| Cooling Concept | Air-cooled | Air-cooled |
| Operation Temperature Range (°C) | 0~40°C | 0~40°C |
| Operation Relative Humidity [RH (%)] | 10%~90% (Non-condensing) | 10%~90% (Non-condensing) |
Select with the complete system in mind.
Start with the application, then confirm electrical fit, environment and order requirements against the selected model.
List the expected loads
Compare normal demand and startup loads with the stated continuous and surge output.
Set the runtime target
Use the stated battery capacity to compare the operating time required for essential devices.
Review charging routes
Confirm that the available AC, solar or vehicle charging method matches the intended preparation routine.
Confirm the market version
Review socket standard, documentation, packaging and included accessories for the destination market.
Confirm the full system, not one feature
The listed BMS, output and charging features apply within quoted operating limits. Confirm device load, startup demand, charging source, socket standard and operating conditions before use.
Ask which current datasheet, user manual, packing list and market-specific order documents apply to the exact quoted configuration.

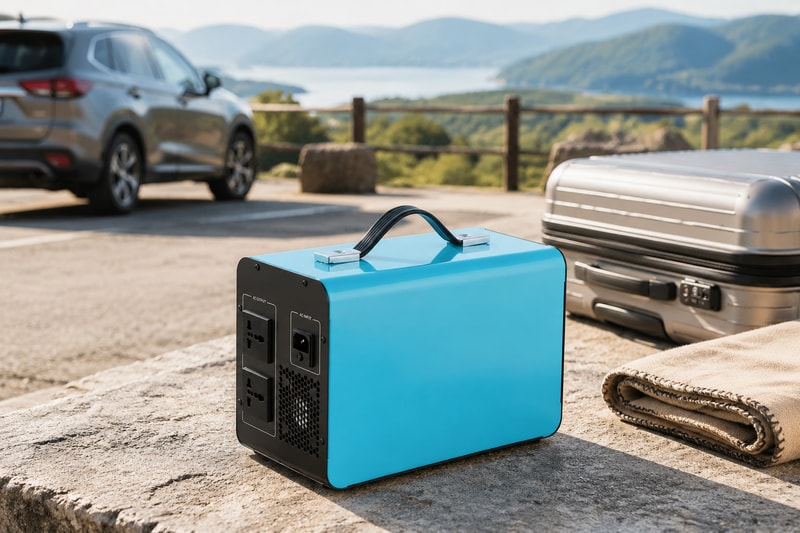

Lightweight power for travel
A portable energy solution for travel use, with AC, USB-A, USB-C, and DC5521 outputs for compatible electronics.
Lightweight backup energy
Portable energy for compatible electronics through AC, USB-A, USB-C, and DC5521 outputs.
Travel use
A portable power station solution designed for lightweight energy needs while traveling.
OEM supply
500 W and 700 W portable power station versions are available for OEM supply.

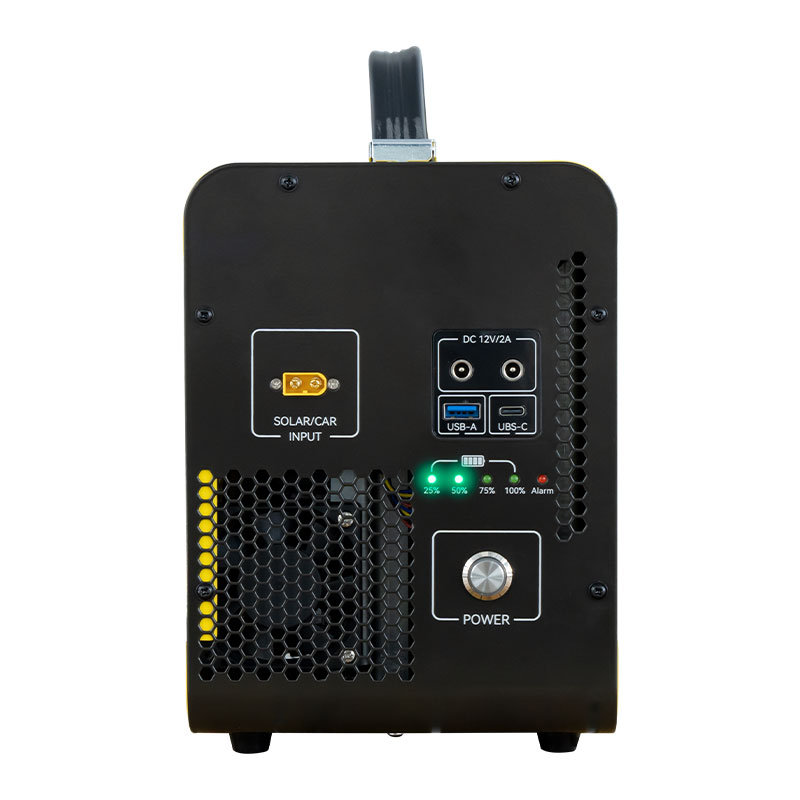

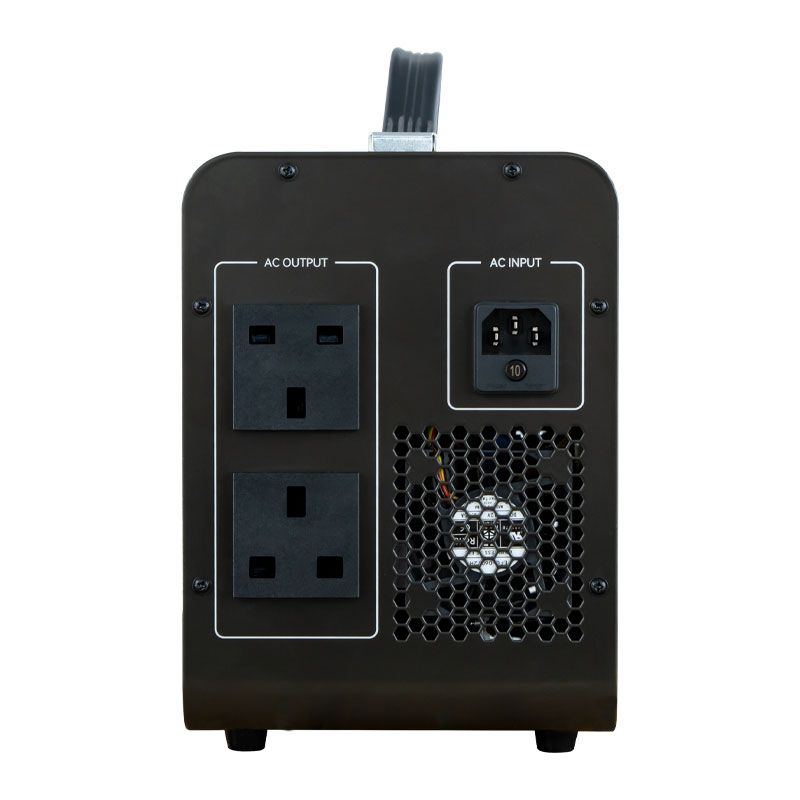

Product gallery
Review the available product views, enclosure details, controls, and installation format.
Discuss the required market configuration.
Use the inquiry to discuss available electrical configurations, branding, packaging, documentation, and project requirements.
Configuration options
Ask which branding, interface, enclosure, and packaging options are available.
Commercial planning
Confirm quantity, lead time, destination market, and documentation.
